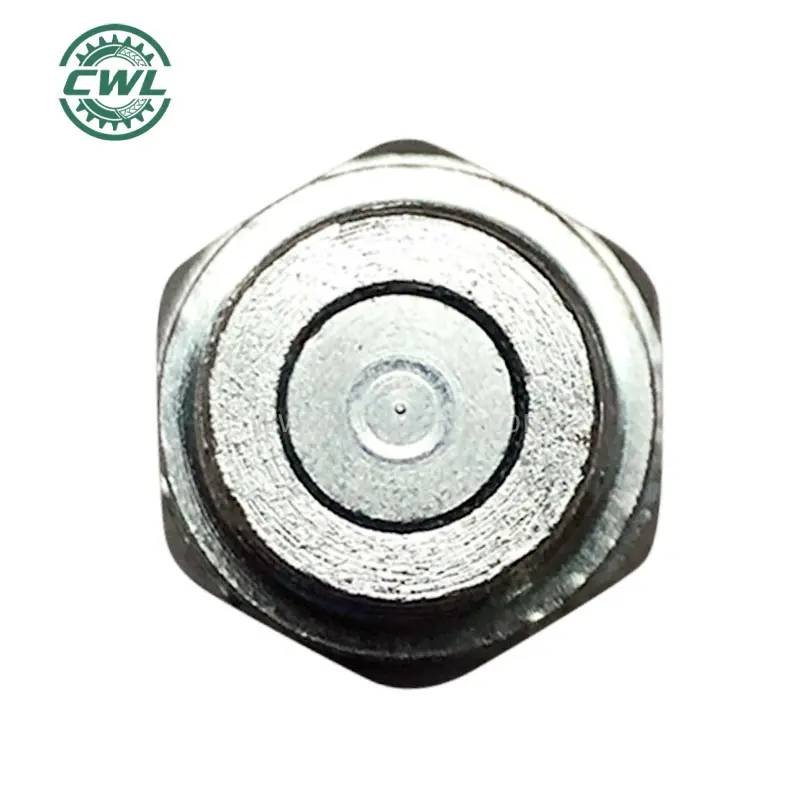

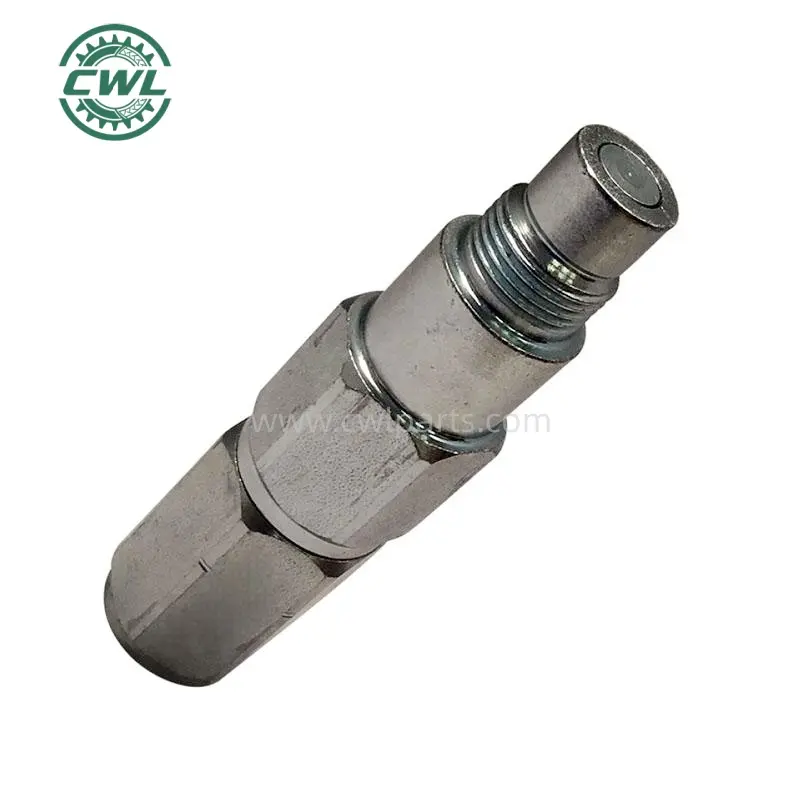

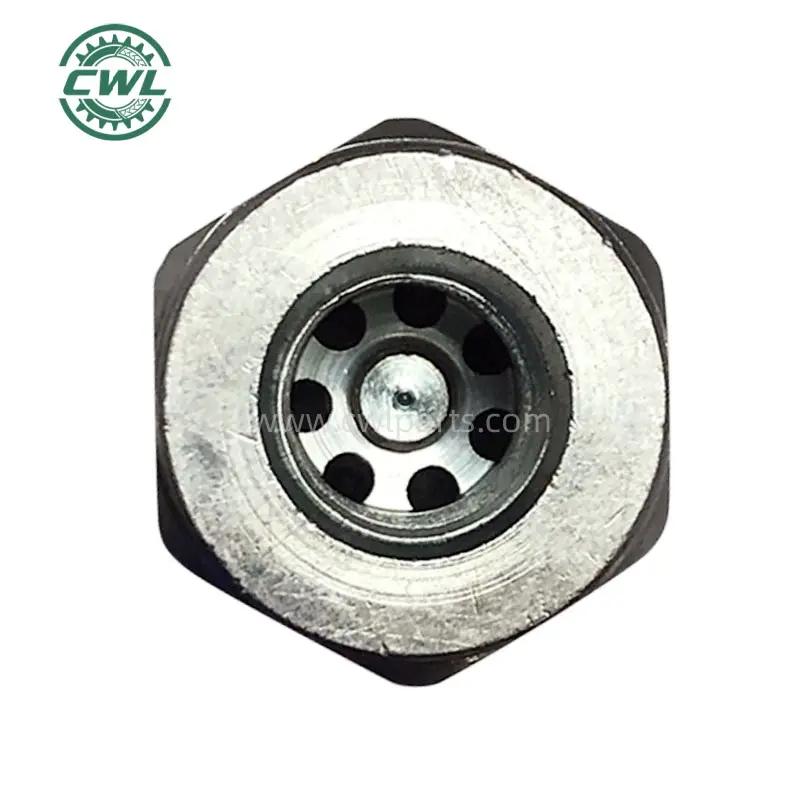

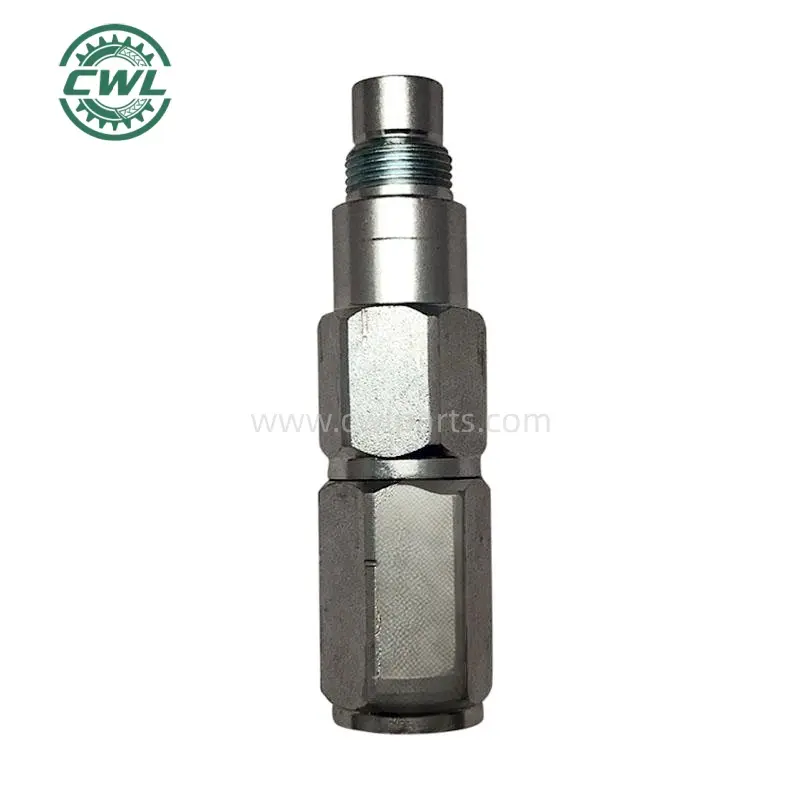

OEM 84435502 Replacement HYD Connector CASE IH Quick-release Steel Coupler for New Holland Combine Harvesters Manufacturer, Suppliers

84435502 is a hydraulic quick-connect replacement part designed for CASE IH/New Holland combine harvesters. Featuring a steel quick-release structure that precisely matches the original factory interface, it enables efficient connection and disconnection of hydraulic lines, ensuring stable operation of the agricultural machinery's hydraulic system. Compatible with all mainstream models of New Holland combine harvesters, it represents a cost-effective choice for maintenance and replacement in agricultural machinery hydraulic systems.

Send Inquiry

Product Description

OVERVIEW

84435502 is a steel quick-release hydraulic coupling replacement part compatible with CASE IH/New Holland combine harvesters. Manufactured strictly to OEM specifications, it enables rapid connection and disconnection of hydraulic lines, ensuring stable and efficient operation of agricultural machinery hydraulic systems. Compatible with all mainstream models of New Holland combine harvesters, it represents a cost-effective choice for agricultural machinery maintenance and replacement.

SPECIFICATIONS

Part Name	CASE IH Quick-Release Steel Hydraulic Couplers	Part Number	84435502
Product Type	Hydraulic Connector	Compatible Brand	Case IH, New Holland
Equipment	Combine Harvester	Interface	OEM Standard
Operating Temp	-20℃ - 100℃	Quality	OEM standard

RECOMMENDED RELATED MODELS

84434997 Quick Coupler - CASE IH	47870715 Quick Coupler - Male - CASE IH
84435046 Quick Coupler - Female - CASE IH	84435047 Quick Coupler - Female - CASE IH
47870683 Quick Coupler - Male - CASE IH	84435503 Quick Coupler Kit- CASE IH
47370116 Hydraulic Coupler - CASE IH	84993691 KIT - CASE IH
456012 Quick Coupler - Male - CASE IH	456017 COUPLING, QUICK - CASE IH

KEY FEATURES

⚡

Efficient and Convenient Connection: Quick-connect design enables connection and disconnection without additional tools, significantly reducing hydraulic line operation time.

🛡️

Reliable Sealing and Leak Prevention: Precision sealing structure and high-quality seals effectively prevent hydraulic fluid leakage and pressure loss.

🏗️

Robust Durability: The steel body offers high strength, impact resistance, and wear resistance, withstanding harsh agricultural conditions.

⚙️

Precise Compatibility: Manufactured strictly to CASE IH original specifications for stable connections and seamless compatibility.

🔒

Safety Locking: Features an integrated locking mechanism to prevent accidental disconnection during vibration-heavy operations.

APPLICATION

Primarily used in the hydraulic systems of New Holland combine harvesters, it connects hydraulic lines in critical areas such as the header hydraulic drive, conveyor hydraulic control, and steering hydraulic system. Suitable for various operating conditions in agricultural harvesting operations, including crop harvesting scenarios across different terrains such as plains and hills.

COMPATIBLE MODELS

Model Name	Fitment	Product Type	Product Line
2010 RIGID GRAIN HEAD	1	HARVESTING EQUIPMENT	HEADERS
2020 FLEXIBLE GRAIN HEAD	1	HARVESTING EQUIPMENT	HEADERS
2388 AXIAL-FLOW COMBINE	1	HARVESTING EQUIPMENT	AXIAL ROTARY COMBINES
2577 AXIAL-FLOW COMBINE	1	HARVESTING EQUIPMENT	AXIAL ROTARY COMBINES
5088 AXIAL-FLOW COMBINE	3	HARVESTING EQUIPMENT	AXIAL ROTARY COMBINES
6088 AXIAL-FLOW COMBINE	3	HARVESTING EQUIPMENT	AXIAL ROTARY COMBINES
7130 COMBINE TIER 4	1	HARVESTING EQUIPMENT	AXIAL ROTARY COMBINES
AFX8010 AXIAL-FLOW COMBINE	1	HARVESTING EQUIPMENT	AXIAL ROTARY COMBINES

FREQUENTLY ASKED QUESTIONS

1. Which models is the 84435502 hydraulic connector compatible with?

Specifically designed for New Holland Combine Harvesters, it conforms to CASE IH hydraulic system standards. It serves as an OEM replacement for matching hydraulic line interfaces on corresponding models.

2. What is the maximum working pressure for this connector?

The maximum working pressure reaches 4000 PSI. It is compatible with standard agricultural hydraulic fluids and seal materials like nitrile rubber.

3. How should this hydraulic connector be properly installed?

Shut down the machine and relieve pressure first. Clean the interface, align and insert the connector until you hear a “click” sound indicating it is locked. Test connection stability by gently pulling the hose.

4. What should be done if hydraulic oil leakage occurs during use?

Relieve pressure and disconnect the connector. Inspect seals for damage or misalignment and replace them if necessary. If leakage persists, check the joint surface for scratches or deformation.

5. Can connection or disconnection be performed under pressure?

Not recommended. Operating under pressure may cause leaks, component damage, and safety hazards. Always release hydraulic line pressure via control elements before operation.

6. Do seals require periodic replacement?

Yes, seals are wear parts. We recommend replacement every 500-800 operating hours or when performance deteriorates, especially under severe operating conditions.
