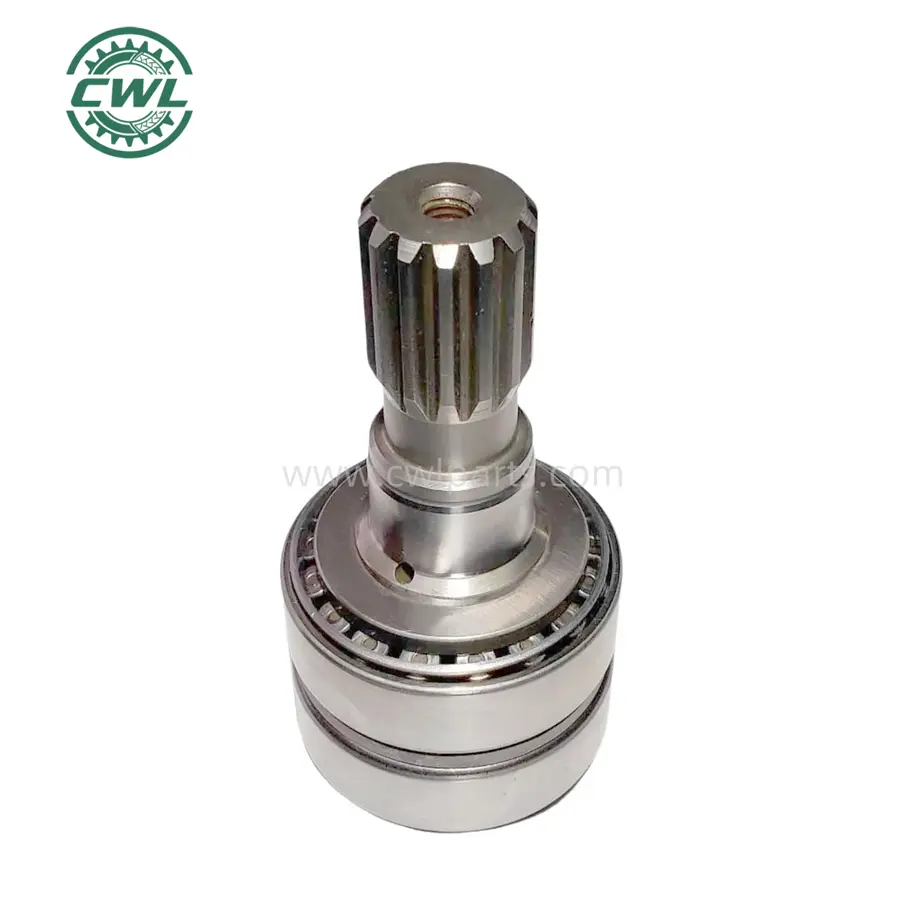

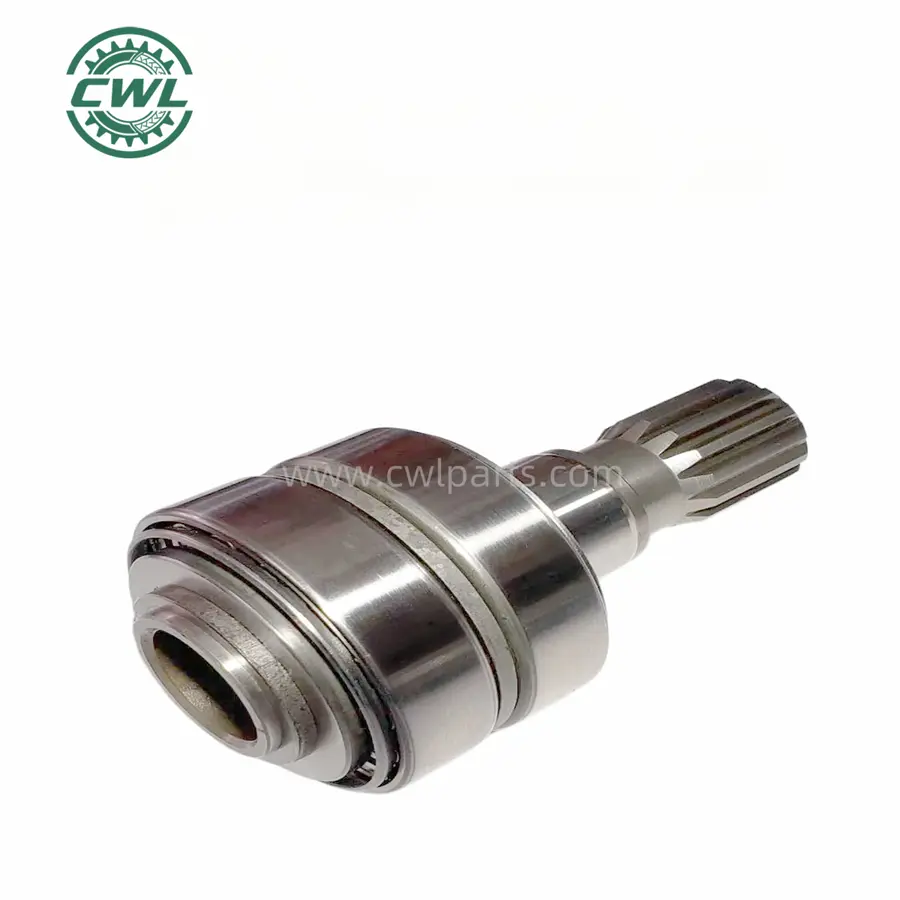

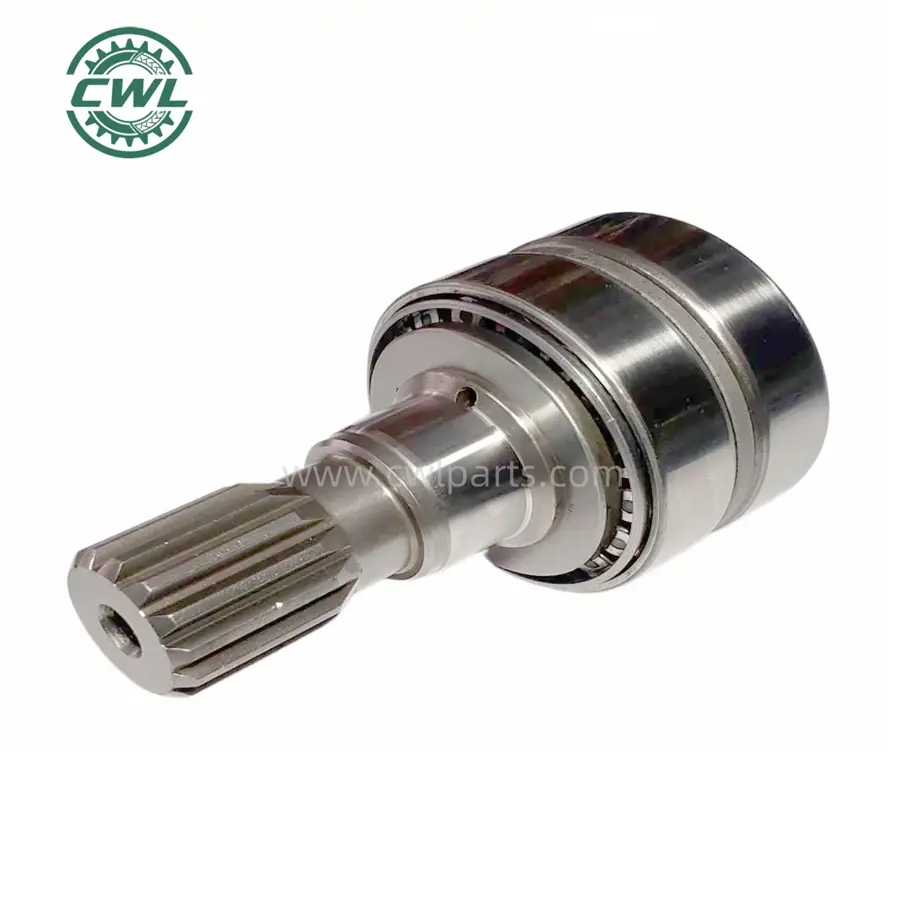

Custom Replacement Spare Part Spline Shaft for CL 4000 Shaft Kit 202861-004 Factories, Exporters

CL 4000 spline shaft kit 21618-004 (For tapered roller bearings) is the ultimate splined shaft kit replacement solution for your Danfoss/Eaton 4000 series equipment. This all-in-one precision spline shaft kit comes with every critical component needed, eliminating the hassle of sourcing individual parts. Crafted from premium, industrial-grade materials, this agricultural machinery spline shaft is engineered to resist extreme wear and tear, easily handling heavy loads even in the toughest working conditions. The precision-machined parts ensure seamless alignment and smooth torque transfer, boosting motor efficiency by up to 15% compared to generic replacements. Whether for agricultural, construction, or industrial use, the spline shaft with bearing inserted replacement shaft kit delivers long-lasting performance. Trust it to get your equipment back to peak performance quickly and reliably.

Product Description

Overview

The agricultural machinery spline shaft kit replacement 202861-004 for CL 4000 series hydraulic motors is a comprehensive set of components centered around a splined shaft. The precision spline shaft within this kit is a specialized mechanical part with ridges (splines) running along its length. These splines mesh with corresponding grooves in a mating part, like a spline hub, to efficiently transfer torque while allowing for some axial movement if required.

Key Features

High-quality alloy structural steel materials: 20CrNiMo
Precision Engineering: High-precision control of tolerances and errors for stable transmission.
Wide Range of Applications: Compatible with Danfoss/Eaton CL 4000 series hydraulic motors.
Complete Kit: Includes shaft, two tapered roller bearings, spacer, and retaining ring.
Maintenance-Friendly: Spline shaft kit designed with bearings pre-inserted.
OE Reference Number: 202861-004.

Technical Parameters

Number of Teeth 14 (External Gear) / 12 (Internal Gear)
Tolerance 0.101mm (External) / 0.107mm (Internal)
Weight 1445g
Pressure Angle 30°
Accuracy Grade 6H (Side Fit)
Surface Hardness 58-63 HRC
Core Hardness 40-45 HRC

Manufacturing & Craftsmanship

The production process of spline shaft 202861-004 involves highly controlled steps: forging, rough machining, spline forming (rolling or milling), carburizing and quenching, precision grinding, surface treatment, and rigorous inspection.

Every kit undergoes comprehensive testing before leaving the factory, including dimensional accuracy, performance testing, fit accuracy, and flaw detection to ensure high-quality and high-performance standards.

Frequently Asked Questions

What is the application of the 202861-004 spline shaft kit?
It is specifically designed as a replacement part for Danfoss and Eaton CL 4000 series hydraulic motors used in agricultural machinery.
What material is used in the manufacturing of this shaft?
The shaft is made from high-quality 20CrNiMo alloy structural steel, known for its excellent durability and strength.
What components are included in the 202861-004 kit?
The comprehensive kit includes the precision spline shaft, two tapered roller bearings, a spacer, and a retaining ring.
How is the hardness of the spline shaft controlled?
The shaft undergoes carburizing and quenching to achieve a surface hardness of 58-63 HRC, while the core maintains a hardness of 40-45 HRC for optimal toughness.
Does the kit come ready for installation?
Yes, the kit features a maintenance-friendly design with bearings pre-inserted, ensuring a smooth and stable installation process.
What is the tooth count for this specific spline shaft?
This model features 14 teeth on the external gear and 12 teeth on the internal gear, precisely engineered for high-accuracy fitment.
