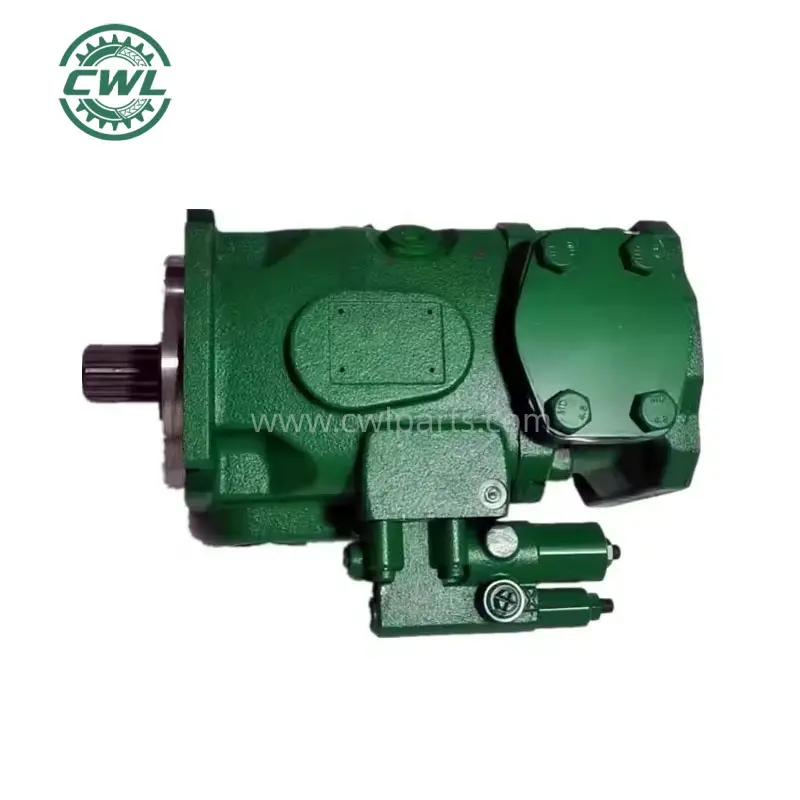

OEM AN374889 Hydraulic Pump Replacement for John Deere 7660 Cotton Picker Exporter, Exporters
1 / 1
OEM AN374889 Hydraulic Pump Replacement for John Deere 7660 Cotton Picker Exporter, Exporters

OEM AN374889 Hydraulic Pump Replacement for John Deere 7660 Cotton Picker Exporter, Exporters

AN374889 Hydraulic Pump is a high-performance replacement part specifically engineered for the John Deere 7660 self-propelled six-row cotton picker. As the core power component of the picker's hydraulic system, its specifications and parameters are identical to the original factory part. It precisely addresses issues such as pump wear, insufficient power, and leakage caused by prolonged high-intensity operation, providing reliable assurance for the picker's efficient operation. This makes it the preferred replacement solution for large-scale farms and and agricultural machinery maintenance teams. The AN374889 pump body dimensions, mounting hole positions, and inlet/outlet port specifications fully comply with John Deere 7660 cotton picker OEM standards, ensuring seamless compatibility with the hydraulic system. Replacement requires no pipeline modifications or interface adjustments. Maintenance personnel can complete installation quickly using standard tools, significantly reducing downtime and preventing operational delays during peak harvest seasons.

Send Inquiry

Product Description

OVERVIEW

AN374889 Hydraulic pump's internal core components are crafted from high-strength alloy materials. Critical parts such as pistons and valve plates undergo precision machining and heat treatment processes, delivering outstanding wear resistance and pressure tolerance. Paired with a reinforced sealing system, it effectively withstands harsh environmental impacts including field dust, continuous vibration, and extreme temperatures (-20°C to 80°C).

Optimized for the load requirements of the John Deere 7660 cotton picker, its rated pressure and flow precisely match critical operations including main spindle rotation, lift mechanism adjustment, cotton conveyor drive, and bale compression.

This prevents oil leakage under high pressure, ensuring stable performance during extended continuous harvesting operations. AN374889 delivers performance comparable to OEM components at a more competitive price, significantly lowering long-term operational costs and generating greater economic benefits.

SPECIFICATIONS
Part Name Hydraulic Pump Part Number AN374889
Weight 64 lb Height 8.1 in
Width 9.3 in Length 13.4 in
Pump Type Load-sensing pressure-compensated variable pump Structure Type Axial piston type
Operating Temp -20°C ~ 80°C Drive Model Shaft Drive
Compatible Equip John Deere 7660 Cotton Picker Usage Repair / Replacement
Related Models AN374888, AN373834 / PG200701
APPLICATIONS
1
Field Harvesting Operations: Delivers stable high-pressure power to six-row picking heads, ensuring adaptability to varying crop densities. Supplies energy to conveyor augers and hydraulic lift mechanisms.
2
Maintenance & Replacement: Directly substitutes faulty original pumps without requiring pipeline modifications. Ideal for restoring equipment functionality and extending machine service life.
3
Inventory Management: Essential stock for large-scale farms and agricultural rental companies to prevent operational disruptions during the peak picking season.
COMPATIBLE MODELS
  • ✔ John Deere 7660 Cotton Picker
FREQUENTLY ASKED QUESTIONS
1. Is AN374889 compatible with other cotton picker models?
This pump is exclusively designed for the John Deere 7660 self-propelled six-row cotton picker. Mounting holes and pressure specifications are tailored specifically for this model. It is not interchangeable with John Deere 7760 or 6440 models.
2. How does AN374889 differ from the OEM hydraulic pump?
Core performance parameters like rated pressure and flow rate meet OEM standards for direct replacement. It offers superior cost-effectiveness and shorter supply cycles while maintaining durability comparable to the original part.
3. Does installation require specialized tools or modifications?
No. Its dimensions and interfaces replicate the original pump exactly. Standard wrenches are sufficient for installation. Ensure bolts are tightened to original manufacturer torque specifications.
4. What precautions are needed during the initial startup?
Before starting, fill the pump body with specific hydraulic oil (J20C/D) to prevent dry running. Run the pump idle for 1-2 minutes to purge air from the lines before beginning full operations.
5. How can I extend the service life of this hydraulic pump?
Replace hydraulic oil and filters every 500 operating hours, clean dust from the pump surface regularly, and avoid forced operation if the picking head jams to prevent overload.
6. What should I do if the pump overheats during operation?
Check for correct oil viscosity, ensure the cooling system/radiator is clean, and avoid prolonged overload. If temperatures still exceed 80°C, inspect for internal component wear.
