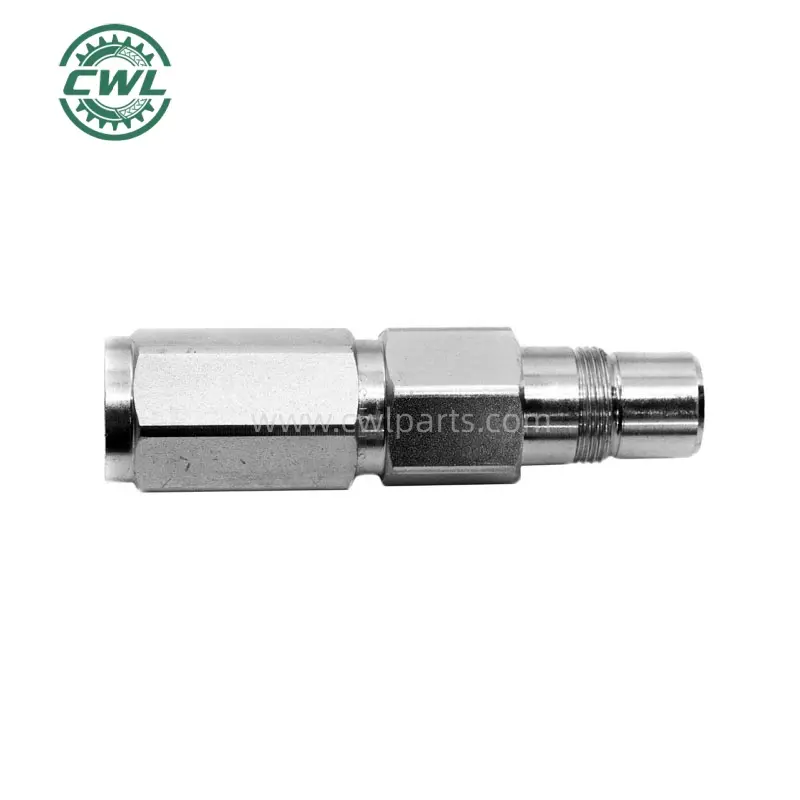

When you're in the middle of a harvest, the last thing you need is a hydraulic fitting that won't seat or a connection that’s constantly weeping oil. The 47360258 Replacement Male Quick Coupler is designed specifically for agricultural equipment, providing a direct-fit solution that actually holds up under pressure.
This male coupler (often referred to as part numbers 87472035 or 84435502) is a staple for CR and CX series combines and FR forage harvesters. It’s built to withstand the high-cycle vibration and thermal expansion typical of heavy agricultural use. Because it’s machined to exact OEM tolerances, it snaps into place without the wrestling or "mallet-assisted" installation required by lower-quality aftermarket alternatives.
| Part Name | Quick Coupler | Part Number | 47360258 |
| Product Type | Hydraulic Male Coupling | Compatible Brand | Case IH, New Holland |
| Compatible Equipment | Harvesting & Forage Equipment | Installation Interface | Same as OEM |
| Quality | OEM standard | Length | 108.4 mm |
| Temperature Range | -25°C to +125°C | Purpose | Repair/Replacement |
| This Kit includes the following parts | ||
|---|---|---|
| Type | Part Number | Description |
| Kit | #87683889 | DIA KIT, HARVESTER |
| Kit | #47835386 | DIA KIT, HARVESTER |
| Kit | #47863219 | DIA KIT, HARVESTER |
| Kit | #51607848 | DIA KIT, HARVESTER |
| Kit | #84110662 | DIA KIT, HARVESTER |
| Kit | #84110661 | DIA KIT, HARVESTER |
| Kit | #87683890 | DIA KIT, HARVESTER |
| MODEL NAME | FITMENT | PRODUCT TYPE | PRODUCT LINE |
|---|---|---|---|
| 270FP FR FORAGE PICK-UP | 2 | FORAGE EQUIPMENT | HEADERS |
| CR10 ROTARY COMBINE | 3 | HARVESTING EQUIPMENT | ROTARY COMBINES |
| CR10.90 REVELATION COMBINE | 2 | HARVESTING EQUIPMENT | ROTARY COMBINES |
| CR8.90 MY18 REVELATION | 3 | HARVESTING EQUIPMENT | ROTARY COMBINES |
| CX8.80 A5 COMBINE | 1 | HARVESTING EQUIPMENT | CONVENTIONAL COMBINES |
| FR920 FORAGE HARVESTER | 1 | FORAGE EQUIPMENT | SELF-PROPELLED FORAGE HARVESTER |
| UltraFeed 4.0 SP FORAGE HEAD | 1 | FORAGE EQUIPMENT | HEADERS |
* Includes wide compatibility across various CR, CX, and FR series equipment from 2001 to present models.
| RECOMMENDED RELATED MODELS | |
|---|---|
| 84434997 Quick Coupler | 47870715 Quick Coupler - Male |
| 84435046 Quick Coupler - Female | 84435047 Quick Coupler - Female |
| 47870683 Quick Coupler - Male | 84435502 Quick Coupler Kit |
| 456012 Quick Coupler - Male | 86592079 Hydraulic Quick Coupling |
Yes, it is designed to be a 100% direct interchange for New Holland and Case IH part numbers 47360258, 87472035, and 84435502, ensuring a perfect fit without modification.
It is primarily used on harvesting equipment, including the CR and CX series rotary combines and the FR series self-propelled forage harvesters, specifically for header and auxiliary hydraulic connections.
Absolutely. It is rated for an operating temperature range of -25°C to +125°C, making it suitable for long harvesting shifts where hydraulic oil temperatures can significantly rise.
The coupler features a precision-machined internal poppet and a hardened steel body. This design ensures a positive, high-pressure seal that maintains system integrity even under vibration.
No. Because it is machined to exact OEM tolerances, it is designed to snap into place easily, replacing the need for forced installation often required by lower-quality aftermarket parts.
The standard length for this specific model is 108.4 mm, matching the original equipment specifications for clearance and connection depth.
