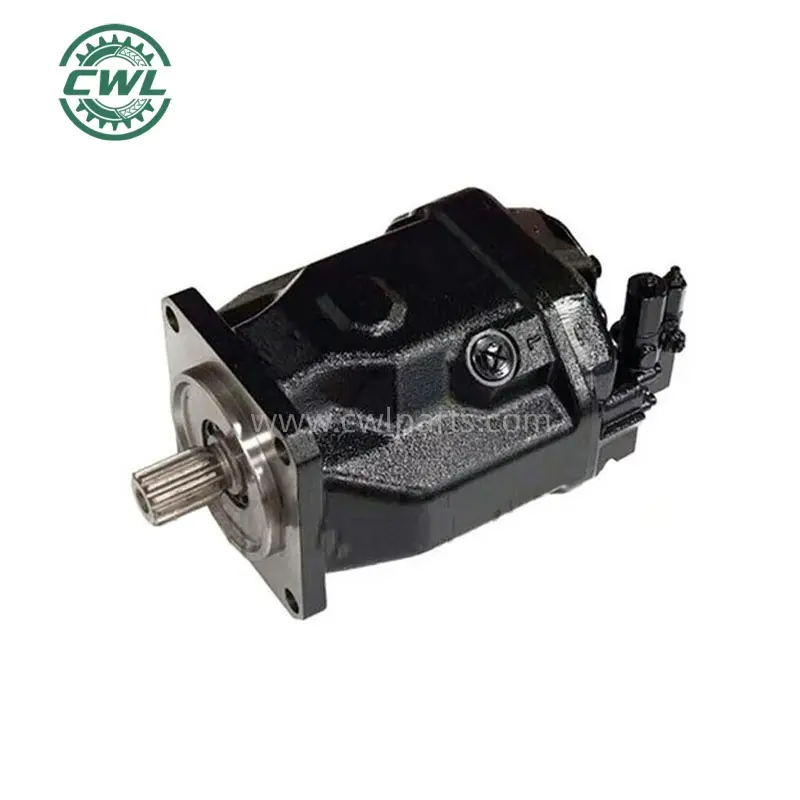

When you're out in the woods, the F069894 (or PG201565) isn't just another part—it’s the literal heartbeat of your forwarder. Specifically engineered for the 1110E, 1110G, 1210E, and 1510E series, these axial piston variable displacement pumps are the go-to replacements when your machine needs its muscle back.
Think of this pump as the central "power hub." It’s responsible for sending a steady stream of high-pressure oil exactly where it’s needed: snapping the grapple shut, moving timber, driving the wheels over uneven ground, or keeping the frame level on a nasty slope.
Forestry work is brutal on hardware. These pumps are built to handle the "triple threat" of logging:
| Part Name | Hydraulic Pump | Part Number | F069894 / PG201565 |
|---|---|---|---|
| Pump Type | Axial Piston Variable Displacement Pump (Open-Circuit Design) | ||
| Primary Function | Main Hydraulic Power (Drive & Work) | System Pressure | High-pressure output for heavy lifting |
| Key Actuators | Grapple, Conveyor, Travel Drive, Frame Leveling | Compatible Models | 1110E, 1110G, 1210E, 1510E |
| Origin | China | Quality | OEM standard |
| Weight | 128 lb | Dimensions | 17" (L) x 11" (W) x 9.2" (H) |
| Operating Temp | -25°C to 85°C (Adapted for cold-temperate and subtropical zones) | ||
Triple-protection framework including precision pre-filtering and advanced labyrinth dust seals with double-lip oil seals to keep hydraulic fluid pure.
Integrated custom pressure buffer and load-sensing module for smooth pressure control and adaptive flow, protecting equipment from "shock" loads.
100% factory-matched dimensions and control logic. True plug-and-play installation with no software tweaks or pipeline modifications required.
Replace hydraulic filters every 500 to 1,000 hours. Never "top off" fluid directly from a dusty barrel; always use a dedicated filter cart.
Check for increased oil flow or heat in the case drain line. This is an early warning system for internal wear that prevents catastrophic metal debris failure.
Daily checks for leaks at mounting flanges and seals. Use an infrared thermometer to monitor housing heat; temperatures above 80°C-90°C may indicate internal slippage.
Indicates sticking displacement control valve or swashplate issues.
Sign of aeration (air in oil) or cavitation. Check suction lines immediately.
Pump failure to maintain pressure, especially on inclines without engine bogging.
A1: The F069894 pump is specifically designed for John Deere Forwarder models 1110E, 1110G, 1210E, and 1510E.
A2: This design allows for open-circuit operation tailored for heavy-duty forestry work, providing high-pressure output exactly when needed for tasks like grappling and driving on rough terrain.
A3: No, this is a true "Drop-In" replacement. The dimensions and control logic match OEM specifications exactly, ensuring plug-and-play compatibility without pipeline modifications.
A4: The pump is engineered for an operating oil temperature range of -25°C to 85°C, making it suitable for both cold-temperate and subtropical forest zones.
A5: Key indicators include slow grapple response, whining or growling noises (cavitation), and excessive heat (above 90°C) on the pump housing.
A6: The pump weighs 128 lb and is manufactured in China according to OEM quality standards.
