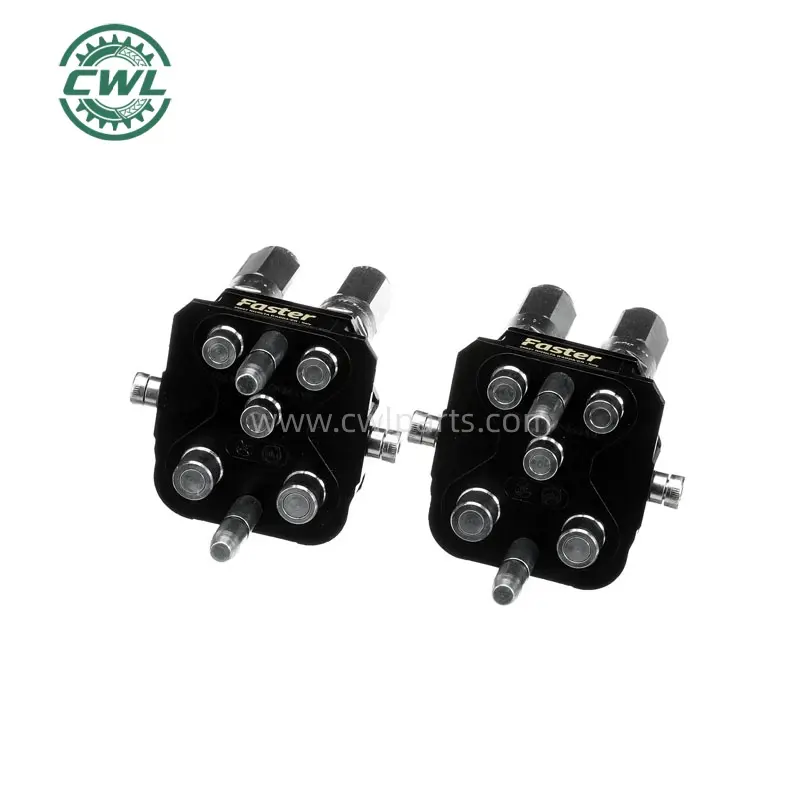

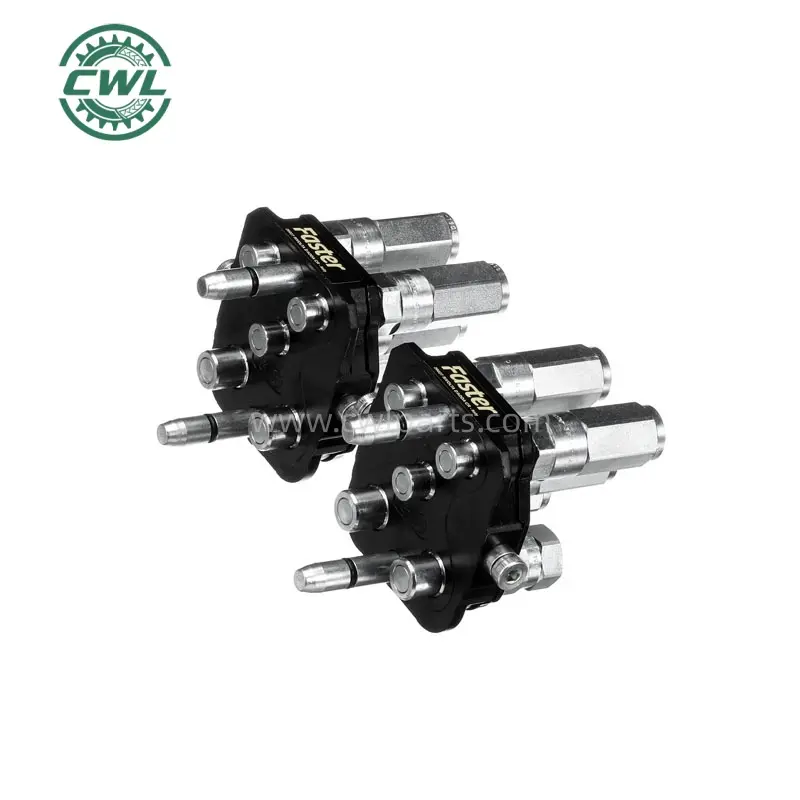

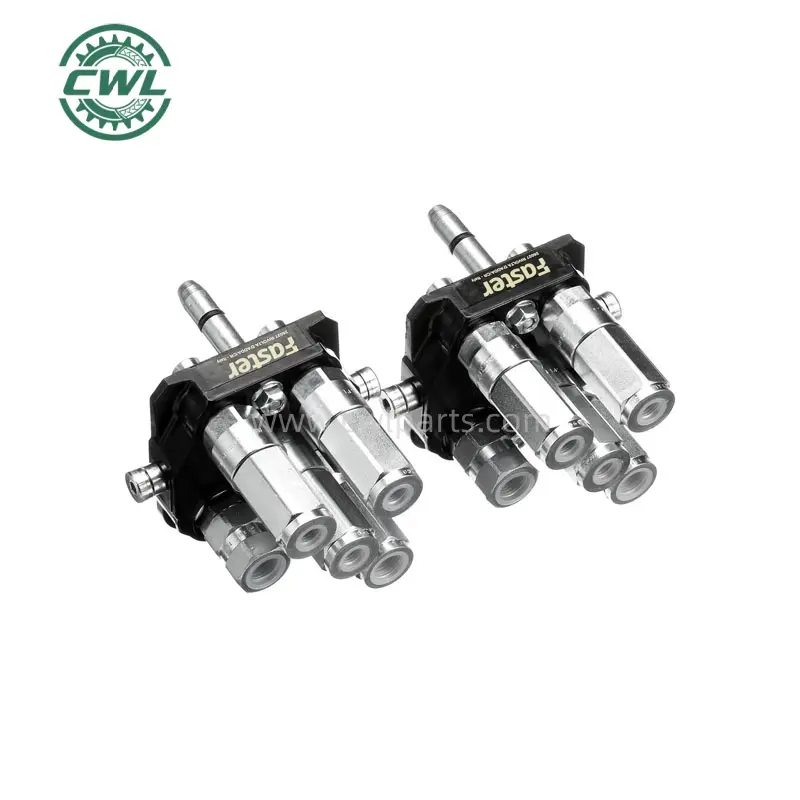

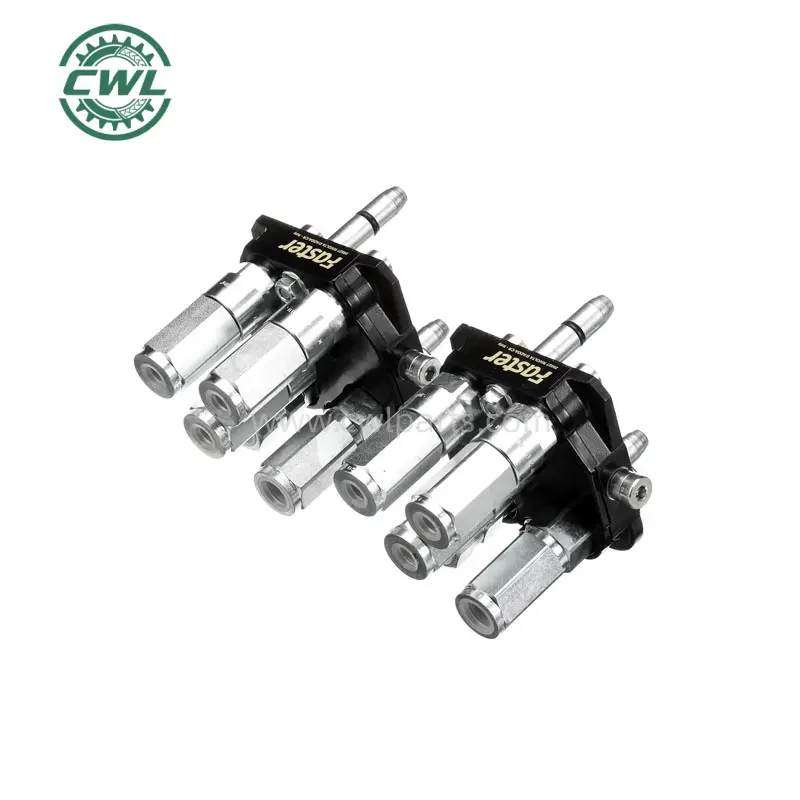

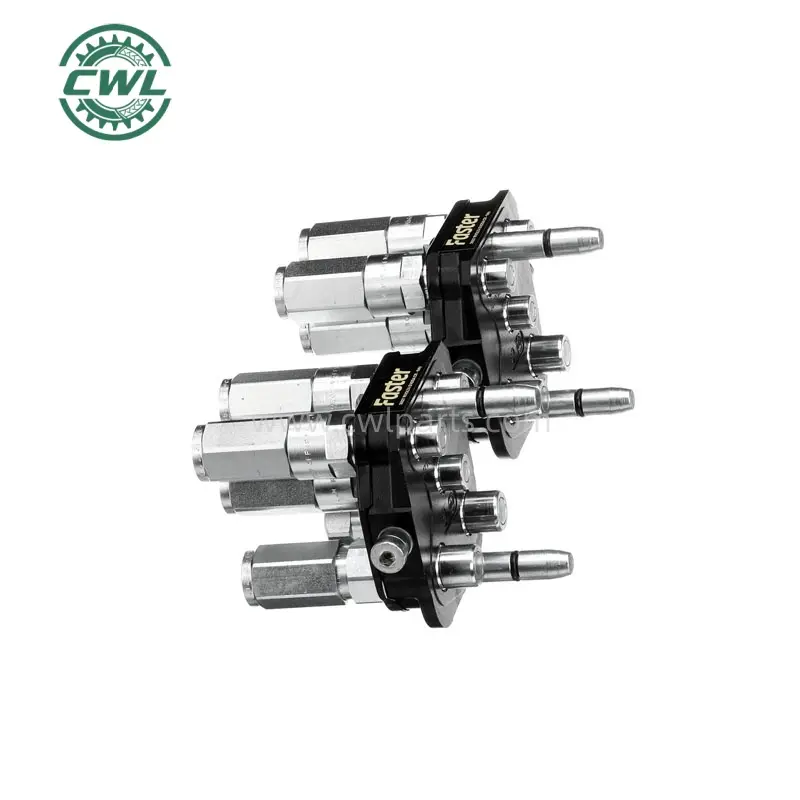

Quickly and easily connect and disconnect hydraulic lines with Quick Coupler #47870715.
In agricultural machinery hydraulic systems, quick-connect couplings serve as core components for power transmission and pipeline control. The 47870715 metric hydraulic quick-connect coupling replacement part addresses complex operating conditions such as frequent cutting platform elevation and material impact in harvesters. Featuring hardening treatment and multi-stage sealing design, it resolves issues of leakage and insufficient fatigue resistance common in traditional couplings. Its male connector structure achieves precise mating with corresponding female fittings, ensuring leak-free hydraulic fluid transfer. A safety self-locking mechanism prevents accidental disengagement during operation. Compatible with the hydraulic circuits of major Case IH and New Holland combine harvester models, it aligns with original equipment manufacturer (OEM) system specifications and mounting dimensions.
| Part Name | Quick Coupler | Part Number | 47870715 |
|---|---|---|---|
| Product Type | Male Hydraulic Coupler | Compatible Brand | Case IH, New Holland |
| Compatible Equipment | Combine Harvester | Installation Interface | Same as original coupler |
| Purpose | Repair/replace/aftermarket | Origin | China |
| Quality | OEM standard | Package | Standard industrial packing |
| Operating Temp | -20℃ ~ 120℃ | Core Application | Quick Connect/Disconnect for Piping |
| Connection | Plug-in with locking mechanism | Nominal Diameter | Standard for cutting unit circuit |
| Type | Part Number | Description |
|---|---|---|
| Kit | #87301386 | PACKAGE, REPAIR. |
| Kit | #48122350 | SERVICE KIT. |
| Kit | #51416582 | DIA KIT, HARVESTER. |
| Kit | #87301386E | PACKAGE, REPAIR. |
| Kit | #87447947 | KIT. |
| Kit | #87533509 | DIA KIT, HARVESTER. |
| 84434997 Quick Coupler - CASE IH | 84435046 Quick Coupler - Female - CASE IH |
| 84435047 Quick Coupler - Female - CASE IH | 47870683 Quick Coupler - Male - CASE IH |
| 84435502 Quick Coupler Kit- CASE IH | 84435503 Quick Coupler Kit- CASE IH |
| 47370116 KIT - CASE IH | 84993691 KIT - CASE IH |
| Model Name | Fitment | Product Type | Product Line |
|---|---|---|---|
| 2010 RIGID GRAIN HEAD | 1 | HARVESTING EQUIPMENT | Headers |
| 2020 FLEXIBLE GRAIN HEAD | 1 | HARVESTING EQUIPMENT | Headers |
| 2142 DRAPER HEADER | 1 | HARVESTING EQUIPMENT | Headers |
| 2388 AXIAL-FLOW COMBINE | 3 | HARVESTING EQUIPMENT | AXIAL ROTARY COMBINES |
| 2588 AXIAL-FLOW COMBINE | 2 | HARVESTING EQUIPMENT | AXIAL ROTARY COMBINES |
| 5088 AXIAL-FLOW COMBINE | 3 | HARVESTING EQUIPMENT | AXIAL ROTARY COMBINES |
| 6140 COMBINE - TIER 2 | 2 | HARVESTING EQUIPMENT | AXIAL ROTARY COMBINES |
| 7250 MY20 COMBINE STAGE 5 | 1 | HARVESTING EQUIPMENT | AXIAL ROTARY COMBINES |
| 8250 MY24 COMBINE TIER 2 | 1 | HARVESTING EQUIPMENT | AXIAL ROTARY COMBINES |
| 9250 AXIAL FLOW MY23 | 1 | HARVESTING EQUIPMENT | AXIAL ROTARY COMBINES |
* Includes many other models in the Axial-Flow, Magnum, and CR series. Please verify with your manual.
