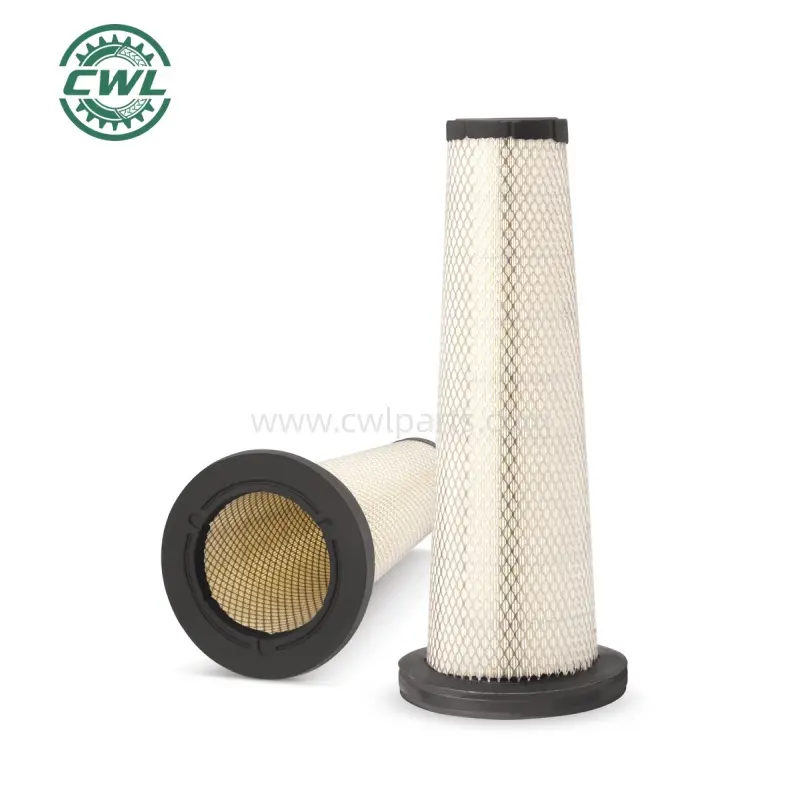

Custom AF26125 Secondary Air Filter, OptiAir Supplier, Exporter

AF26125 secondary air element addresses key design requirements of all equipment manufacturers while outperforming conventional radial seal designs. Resulting in extended service intervals, reduced downtime, and lower maintenance costs. OptiAir 1300 Series Secondary Element AF26125 is related to air filters parts: AF26124, AH19481, AH19170.

Product Description

TECHNICAL SPECIFICATIONS
Largest OD 8.05 inch
Length 19.52 inch
Largest End ID 5.12 inch
Flame Retardant Media No
RELATED PARTS & COMPONENTS
Safety Element Used With AF26124
Filter Used With AH19481
Uses Element AH19170
EQUIPMENT APPLICATIONS
Equipment Model Engine Type Year Qty Req.
JD - 350G LC6090HT01020141
JD - 350G LC6090HT01220141
JD - 300G LCPOWERTECH PVS6.8L-1
Grove - RT9150E3QSC8.320111
Grove - RT9130E4QSC20111
Grove - RT9130E3QSC8.320111
Grove - RT9150E4QSC20111
Grove - RT500E-2QSB6.7-1
Grove - RT890E3--1
Grove - RT600E3QSB 6.7-1
Grove - RT875E3QSB-1
Grove - RT500E-2QSB6.7-C275-1
Grove - RT800E3QSB-1
Grove - RT530E-2QSB 6.7-1
Grove - RT880E3QSB-1
Grove - RT700E3QSB-1
Grove - RT540EQSB 6.720231
Macdon - M1240QSB 6.720231
Liebherr - R 940 DEMOLITIOND944-A7-2520211
Hagie - STS14QSB 6.720181
Hagie - STS12QSB 6.720181
Liebherr - R 946 IV/4FTIER IV/4F20161
Liebherr - R 976D9508A7SCR20131
Liebherr - R 946 IIIB/4IIIIB/4I20131
Solaris Bus - URBINO 12ISBE620121
Liebherr - R 946D936A720121
Solaris Bus - URBINO 10ISBE620121
Liebherr - R 944 C / A 944 CD 936 L20111
Dennis Eagle - Series 10N-19N/WD7F26020091
Miller Electric - NITRO N2XPQSB 6.720081
Solaris Bus - URBINO 18 LE CNGISL-G20051
Hagie - STS12 HI-TRACTORQSB 6.719991
Lidagroprommash - LIDA-1600CUMMINS-1
FREQUENTLY ASKED QUESTIONS
Q: What are the primary dimensions of this filter?
A: The part features a largest outside diameter (OD) of 8.05 inches and a total length of 19.52 inches. The largest end inside diameter (ID) is 5.12 inches.
Q: Is this product compatible with flame retardant requirements?
A: No, this specific model does not feature flame retardant media.
Q: Which safety elements should be used with this part?
A: This part is designed to be used in conjunction with safety element AF26124 and filter AH19481.
Q: Can this filter be used on JD 350G LC excavators?
A: Yes, it is compatible with JD 350G LC models manufactured in 2014 using engines 6090HT010 and 6090HT012.
Q: What is the typical quantity required for equipment application?
A: Based on technical specifications for most compatible equipment like Grove, Liebherr, and Solaris Bus, the required quantity is 1 unit.
Q: Is this part suitable for Solaris Bus models?
A: Yes, it is compatible with Solaris Bus models including URBINO 10, 12, and various LE CNG models with ISBE6 or ISL-G engines.
