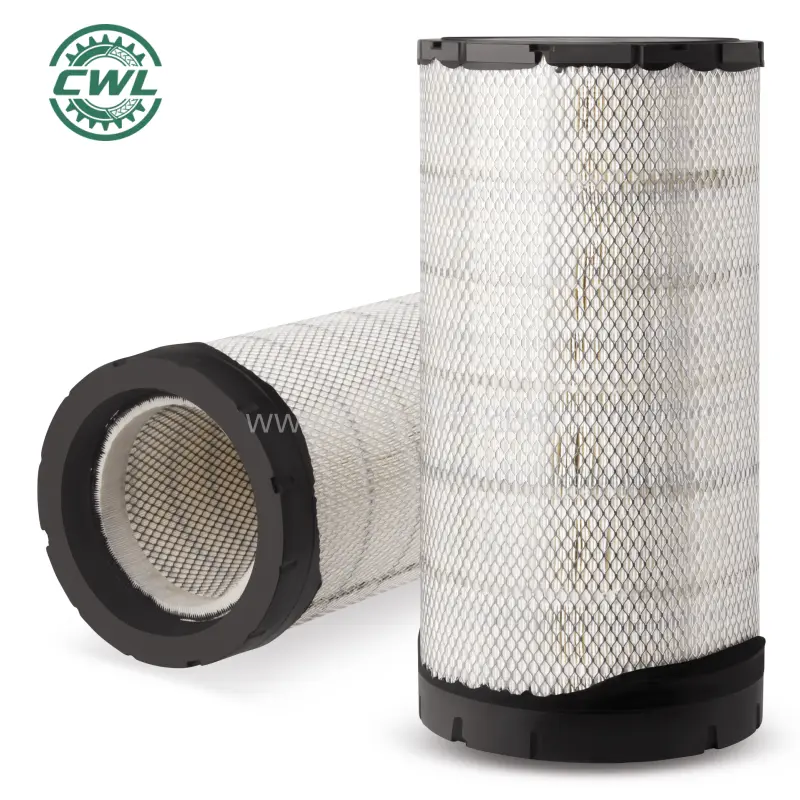

Custom AF26124 Primary Air Filter OptiAir for Agricultural, Construction, Bus Manufacturer, Supplier

AF26124 primary air element addresses key design requirements of all equipment manufacturers while outperforming conventional radial seal designs. Resulting in extended service intervals, reduced downtime, and lower maintenance costs. Related parts: AH19170, AH19480, AH19481, AF26125.

Product Description

Overview & Specifications

Length 20.40 in Largest End ID 6.27 in
Full Life Efficiency 99.92% Largest OD 10.43 inch

Related Parts

Uses Element AH19170
Filter Used With AH19480, AH19481
Primary Air Filter Used With AF26125

Equipment Application

EQUIPMENT ENGINE YEAR QTY.
JD-350G LC6090HT01220141
JD-350G LC6090HT0102014 - 20241
JD-350D LC6090H-1
JD-300G LCPOWERTECH PVS6.8L-1
Grove - RT9130E3QSC8.320111
Grove - RT9150E3QSC8.320111
Grove - RT9150E4QSC20111
Grove - RT9130E4QSC20111
Grove - RT500E-2QSB6.7-C275-1
Grove - RT530E-2QSB 6.7-1
Grove - RT600E3QSB 6.7-1
Grove - RT540EQSB 6.720231
Macdon - M1240QSB 6.720231
Hagie - STS12 / STS14QSB 6.720181
Liebherr - R 940 DEMOLITIOND944-A7-2520211
Liebherr - R 946 IV/4FTIER IV/4F20161
Liebherr - R 976 SeriesD9508A7SCR20131
Solaris Bus - U 10 / 12 / 12.9ISBe6-280B20121
Solaris Bus - URBINO 10 / 12 / 15 / 18MX-11 / ISBE620121
Liebherr - R 944 C / A 944 CD 936 L2006 - 20111
Dennis Eagle - 21W, 23W, 27WD7F30020091
Solbus - SOLCITY / SOLTOURISBe20071
Lidagroprommash - LIDA-1600CUMMINS-2

Frequently Asked Questions

What are the primary dimensions of this filter?
The filter has a length of 20.40 inches, a largest outer diameter (OD) of 10.43 inches, and a largest end inner diameter (ID) of 6.27 inches.
What is the filtration efficiency rating?
This filter features a Full Life Efficiency rating of 99.92%, ensuring high-level protection for your engine.
Which equipment brands are compatible with this part?
It is widely used in JD (John Deere) excavators, Grove cranes, Liebherr demolition and crawler excavators, as well as Solaris and Viseon buses.
Can it be used with Cummins engines?
Yes, it is compatible with various Cummins engines, including the QSB 6.7, QSC 8.3, and ISBe series used in different industrial applications.
Are there any related parts I should be aware of?
This part uses element AH19170 and is commonly used in conjunction with filters AH19480, AH19481, and the primary air filter AF26125.
How many filters are required for Lidagroprommash LIDA-1600?
For the LIDA-1600 equipment with a Cummins engine, the quantity required is 2 units.
