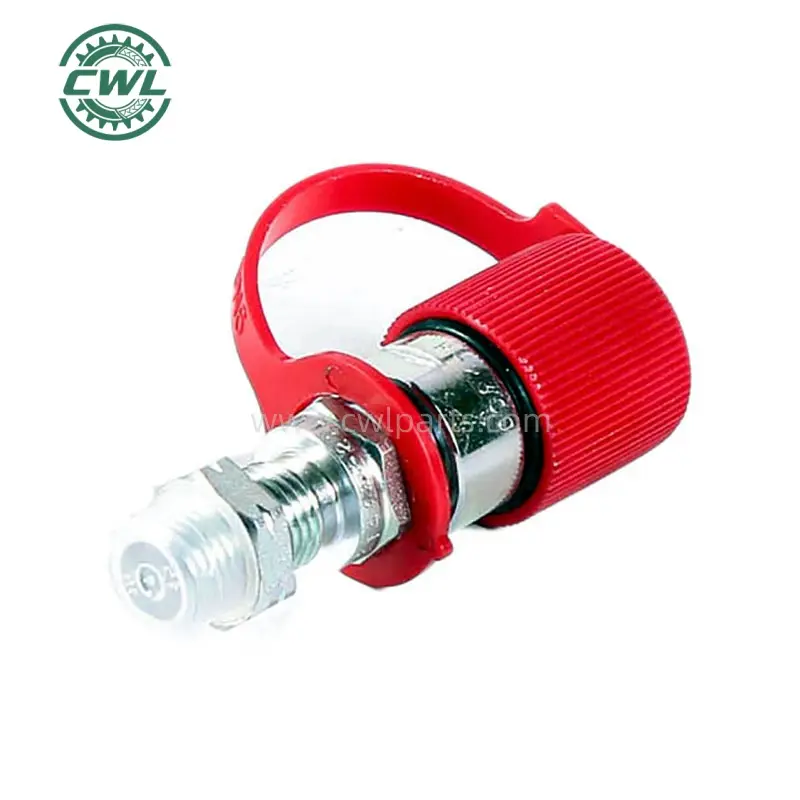

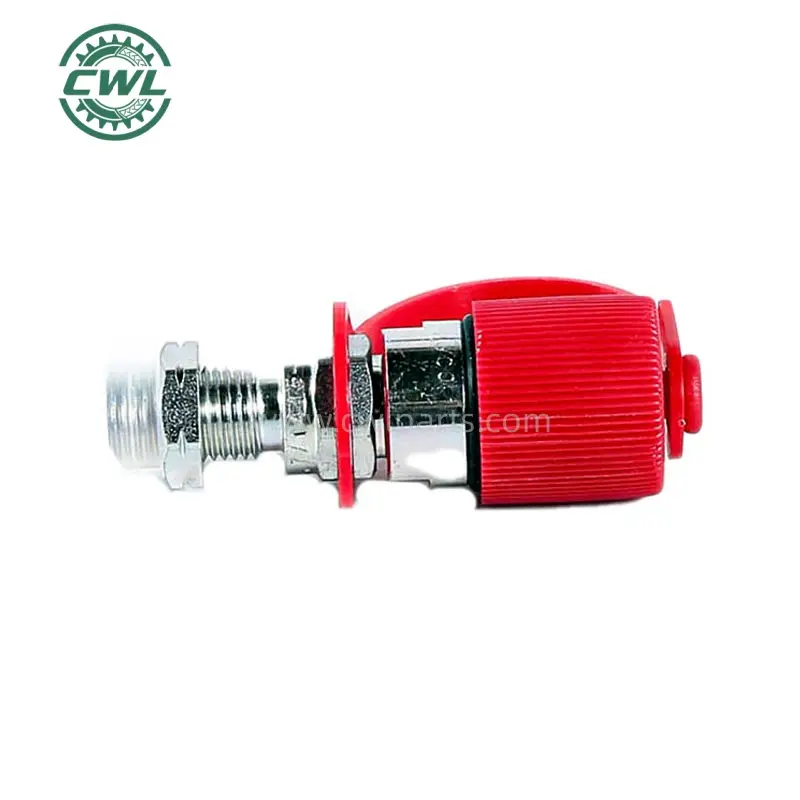

This is typically a 1/2" body size coupling. If your current male tip measures roughly 0.8 to 0.9 inches in diameter, this 456017 female body is likely the correct receiver.
Designed to work seamlessly with the 456012 Male Tip. We recommend replacing both male and female parts simultaneously to ensure a perfect, leak-free connection.
Hydraulic specs can change mid-production for Case IH equipment. Always verify the sticker on your hydraulic block or consult your specific Serial Number (PIN).
| Parameter | Details | Parameter | Details |
|---|---|---|---|
| Part Name | Coupling, Quick | Part Number | 456017 |
| Product Type | Hydraulic Quick Coupler | Compatible Brand | Case IH |
| Compatible Equipment | Forage and Harvesting Equipment | Installation Interface | Same as OEM coupler's |
| Purpose | Repair/replacement/aftermarket | Origin | China |
| Quality | OEM standard | Package | Standard industrial packing |
| Type | Part Number | Description |
|---|---|---|
| Kit | #87516476 | DIA KIT, HARVESTER |
| Kit | #84993691 | KIT |
| Model Name | Qty | Product Type | Product Line |
|---|---|---|---|
| 2106-MX600 6-ROW CORN HEAD 01/02 10/13 | 1 | HARVESTING EQUIPMENT | HEADERS |
| 2108-MFX800 8-ROW CORN HEAD FLIP-UP 01/02 11/13 | 1 | HARVESTING EQUIPMENT | HEADERS |
| CHX320 SELF-PROPELLED FORAGE HARVESTER 11/02 09/05 | 2 | FORAGE EQUIPMENT | SELF-PROPELLED FORAGE HARVESTER |
| CHX420 SELF-PROPELLED FORAGE HARVESTER 11/02 04/06 | 2 | FORAGE EQUIPMENT | SELF-PROPELLED FORAGE HARVESTER |
| CHX520 SELF-PROPELLED FORAGE HARVESTER 11/02 04/06 | 2 | FORAGE EQUIPMENT | SELF-PROPELLED FORAGE HARVESTER |
| CHX620 SELF-PROPELLED FORAGE HARVESTER 11/02 04/06 | 2 | FORAGE EQUIPMENT | SELF-PROPELLED FORAGE HARVESTER |
| CT5050 COMBINE 12/01 05/04 | 1 | HARVESTING EQUIPMENT | CONVENTIONAL COMBINES |
| CT5060 COMBINE 12/01 10/04 | 1 | HARVESTING EQUIPMENT | CONVENTIONAL COMBINES |
| CT5070 COMBINE 12/01 10/04 | 1 | HARVESTING EQUIPMENT | CONVENTIONAL COMBINES |
| CT5080 COMBINE 12/01 05/04 | 1 | HARVESTING EQUIPMENT | CONVENTIONAL COMBINES |
The 456017 is typically a 1/2" body size coupling. You should measure your current male tip; if it's approximately 0.8 to 0.9 inches in diameter, this female body is likely the correct fit.
This part is specifically designed to work with the 456012 Male Tip. To prevent leaks, we highly recommend replacing both the male and female couplings at the same time.
Yes, our 456017 quick coupler is manufactured to meet OEM standards, ensuring reliable performance for harvesting and forage equipment repairs or aftermarket replacements.
On Case IH equipment, hydraulic specifications can change midway through a production year. Checking your Serial Number (PIN) ensures the hydraulic interface matches your specific machine's build.
It is widely used on Case IH Self-Propelled Forage Harvesters (like the CHX series), Combine models (CT5050-CT5080), and various Corn Head headers.
The part is manufactured in China and comes in standard industrial packaging to ensure safe delivery and storage.
