| OE Number | AW32184 | Part Name | Hydraulic Quick Coupler Plug |
| Product Type | Male quick coupler | Matching Female Coupler | LVA16843 |
| Working Pressure | 3000–5000 PSI (20.7–34.5 MPa) | Origin | China |
| Certificate | ISO 9001 | Package | Industrial packing |
| Compatible Model |
Front Loaders: H120, D120, 220R, 300, 300CX, 300E, 300R, 300X, 320R, 440R, 553, 700M, H160, H165, H180 |
||
|
Compact Utility Tractors: 1023E, 1025R, 1026R, 2025R, 2032R, 2036R, 2038R, 3025E, 3032E, X465, X475, X485, X565, X575, X700, X720, X748 series |
|||
|
Matching Engine: John Deere 4045HFA01, Yanmar 3TN/3TNV series engines equipped on compact tractors |
|||
Precision machined to original AW32184 dimension, no modification required, plug-and-play replacement for worn, leaking original couplers on loaders & compact tractors.
Galvanized carbon steel body withstands harsh farm environment: mud, rain, fertilizer and long-term outdoor storage, extending service life far beyond standard generic couplers.
Built-in poppet valve automatically seals fluid channel when disconnected, greatly reducing hydraulic oil waste and preventing air contamination to protect hydraulic pumps and valves.
Withstands peak working pressure up to 5000 PSI, ensuring no burst or leakage under heavy loader lifting, snow blower and backhoe attachment workloads.
Push-pull quick connect structure allows single-hand operation without tools, drastically cutting time switching between front loader, snow blower, tiller and other hydraulic attachments.

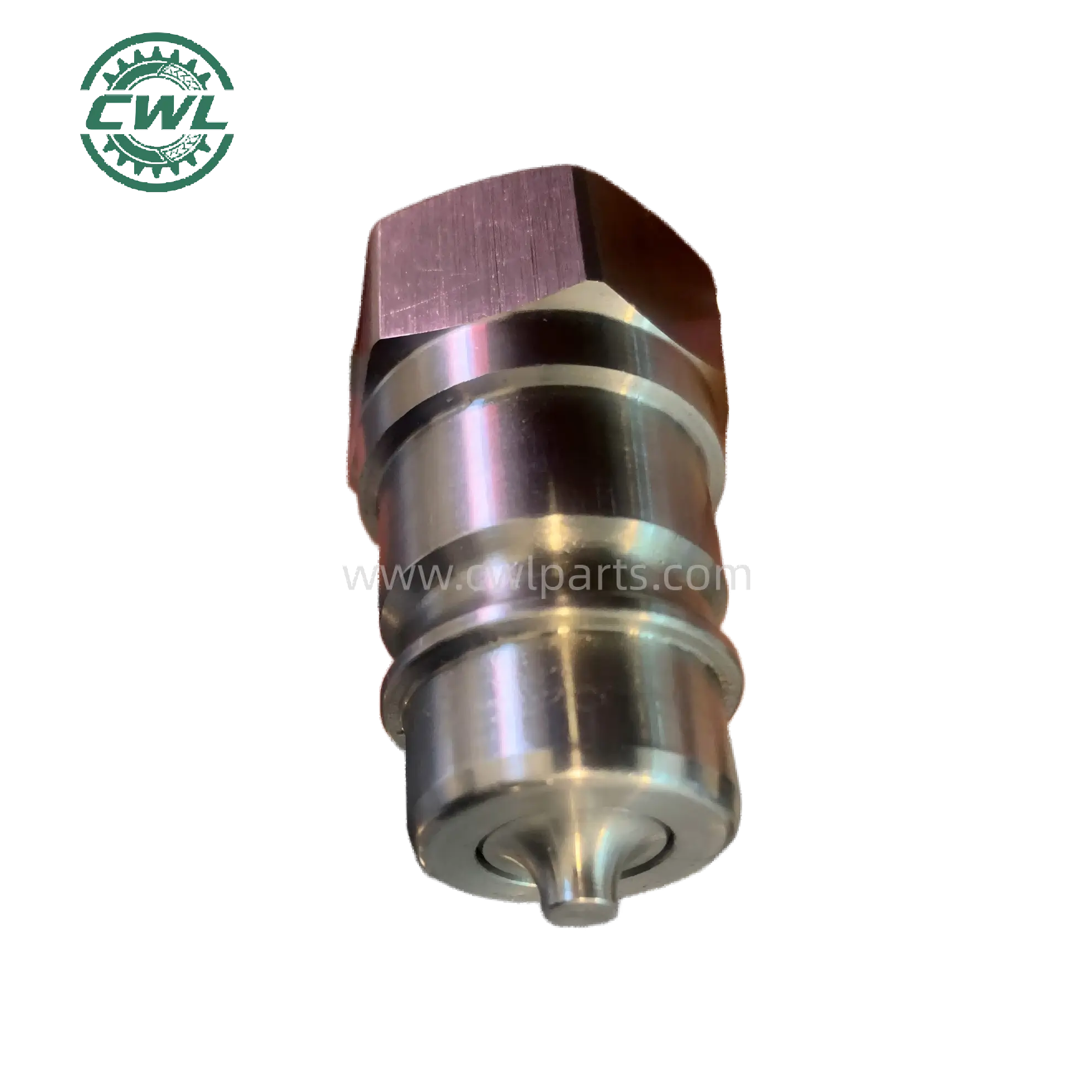

This is a male quick coupler plug with OE number AW32184. It is designed to match perfectly with the LVA16843 female coupler.
It is compatible with front loaders (such as H120, D120, 220R, 300, 300CX series) and compact utility tractors (including 1023E, 1025R, 2025R, 3025E series). It also matches Yanmar 3TN/3TNV series and John Deere 4045HFA01 engines used on compact tractors.
The coupler supports a stable working pressure of 3000 to 5000 PSI (20.7 to 34.5 MPa), which prevents bursting or leaks even during heavy workloads such as loader lifting or snow blowing.
Yes, it features a low-spill, self-sealing design with a built-in poppet valve that automatically blocks the fluid channel upon disconnection, preventing fluid waste and entry of contaminants.
It is constructed from heavy-duty galvanized carbon steel, which offers outstanding protection against corrosion caused by rain, mud, fertilizers, and outdoor exposure.
No, it is a 1:1 OEM direct fit design that fits standard configurations without modification. The push-pull quick connect structure allows quick, tool-free connection and disconnection with one hand.
