ODM 7246799 OEM Bobcat Male Flat Face Hydraulic Quick Coupler Block Cartridge Supplier, Factory

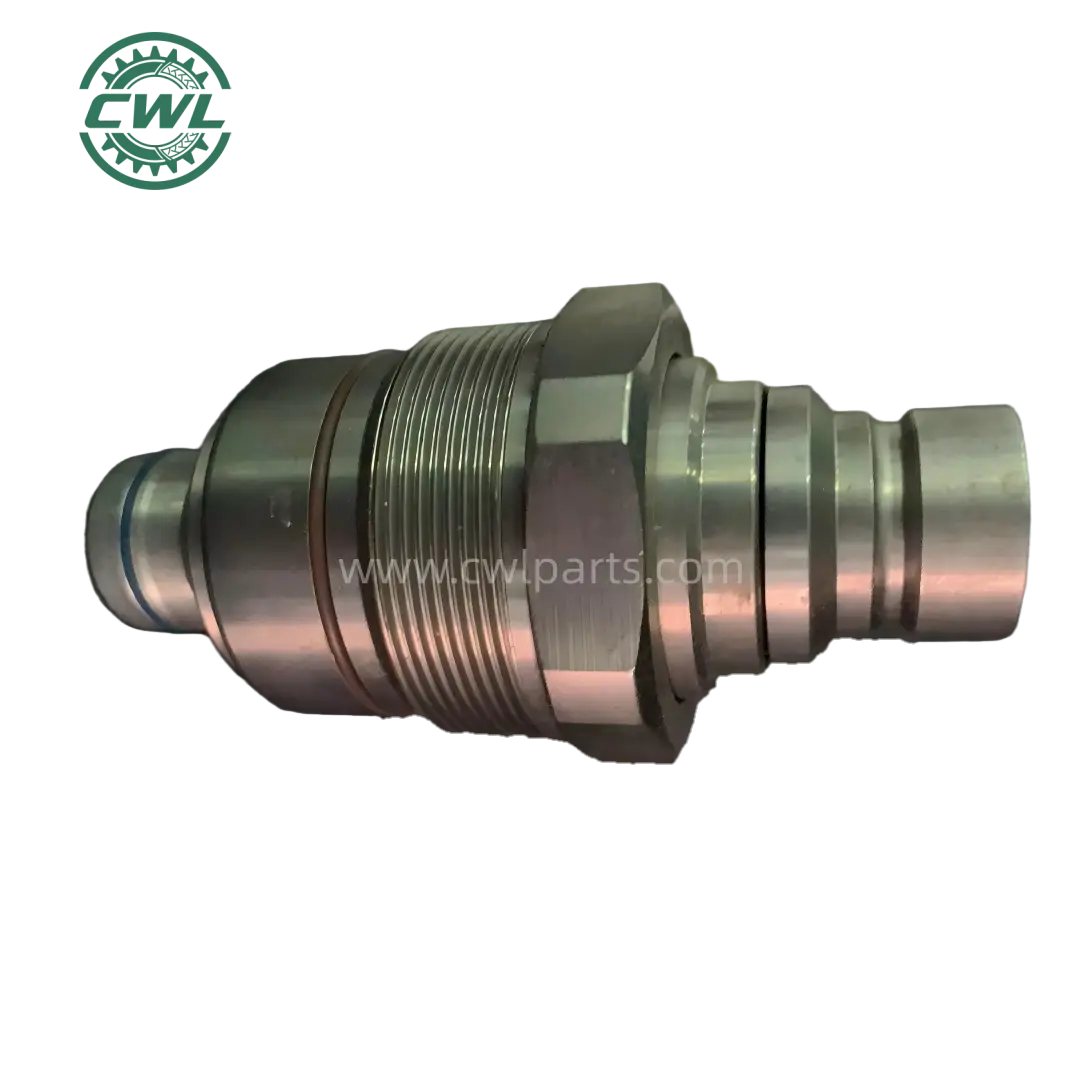

7246799 1/2" Male Flat Face Hydraulic Coupler Cartridge, ISO16028 zero spill upgraded FFH design, OEM replacement for Bobcat 4BD4FH manifold block, 35MPa high pressure, perfectly matches 7246802 female coupler for loader & excavator repair.

Send Inquiry

Product Description

Product Specifications

Part Number	7246799	Part Name	Hydraulic Quick Coupler
Cross Reference	AT406474, 47396760, 3736967, V1511-77140	Product Type	Male Flat Face Coupler Block Cartridge
Applicable Block	Exclusive male cartridge for 4BD4FH manifold block assembly	Rated working pressure	35 MPa (5076 PSI)
Rated flow rate	12 GPM	Operation Type	Push-to-connect, one-hand quick switch, tool-free operation
Origin	China	Purpose	Aftermarket
Packing	Industrial carton	Certificate	ISO 9001
Compatible Model	Suitable for Bobcat loaders: 753, 763, 773, 863, 864, 883, A220, A300, A770, S130, S150, S160, S175, S185, S205, S250, S300, S450, S550, S570, S590, S595, S630, S650, S740, S750, S770, S850, T140, T180, T190, T200, T250, T300, T320, T450, T550, T590

Key Features

Professional Block Cartridge Structure

Specialized male cartridge design for 4BD4FH manifold blocks, with precise 48mm mounting thread for seamless installation. It supports direct plug-and-play assembly with 7246802 female coupler for complete hydraulic matching.

Low Pressure Loss & Stable Output

Smooth internal flow channel minimizes fluid resistance and pressure drop. It maintains stable hydraulic power output during heavy-load operation and improves overall equipment working efficiency.

Heavy-Duty Construction

Made of high-strength carbon steel with premium zinc-nickel plating, the cartridge features excellent wear, pressure and corrosion resistance. It adapts to harsh environments for long-term stable operation.

High Compatibility & Easy Maintenance

Modular cartridge structure enables independent disassembly and replacement, avoiding whole block replacement and cutting maintenance costs. One-hand quick connect design realizes fast switching.

Applications & Compatibility

Skid Steer Loaders

753, 763, 773, 863, 864, 883, S130, S185, S205, S250, S300, S530, S550, S570, S740, S750, S770, S850 series loaders

Track Loaders

T140, T180, T190, T200, T250, T450 series track loaders

Compact Excavators

E32, E34, E35, E38, E42, E45, E50, E55 series mini excavators

Articulated Loaders

A220, A300, A770, L23, L28, L35 articulated loaders

Matching Attachments

Snowblower, trencher, grapple, backhoe, angle broom, hydraulic breaker, planer, V-blade and all Bobcat 1/2” hydraulic drive attachments

Application Scenarios

OEM replacement male cartridge coupler for loaders and compact excavators. Suitable for frequent attachment switching and long-term high-pressure heavy-duty working conditions in construction, road maintenance and agricultural hydraulic systems.

Frequently Asked Questions

Q: What Bobcat loader models is the 7246799 hydraulic quick coupler compatible with?

It is compatible with a wide range of Bobcat loaders including the 753, 763, 773, S130, S185, S250, S300, T190, T300, and mini excavators like the E32 and E35. Check the compatibility model section for the complete list.

Q: What is the rated working pressure and flow rate for this cartridge?

The cartridge is rated for a working pressure of 35 MPa (5076 PSI) and a rated flow rate of 12 GPM, making it ideal for heavy-duty industrial applications.

Q: Which manifold block assembly does this male cartridge fit?

This is an exclusive male cartridge designed specifically for the 4BD4FH manifold block assembly, featuring a precise 48mm mounting thread for direct installation.

Q: What materials are used to ensure the durability of the coupler?

The coupler is constructed from high-strength carbon steel and coated with premium zinc-nickel plating, providing superior resistance against wear, high pressure, and corrosion in harsh environments.

Q: Can I replace this cartridge independently, or do I need to replace the entire block?

The modular cartridge design allows for independent disassembly and replacement. You do not need to replace the entire manifold block, which helps save on maintenance costs.

Q: What are the cross-reference part numbers for this coupler?

The equivalent cross-reference part numbers include AT406474, 47396760, 3736967, and V1511-77140.
